Introducing PoE Switch for CCTV

Often customers have questions about which brand of PoE Switch CCTV is good. They want one that is easy to install, durable, and not too high a price. Today we hold Opportunity to introduce products and suggest what their strengths are The brand we recommend today is the Cisco brand switch itself. The Cisco brand goes back in time and It’s a small brand that perhaps really paints a lot of Cisco equipment… Cisco then directly divided its products into two main groups, with the first group being in the Enterprise segment, which was priced high to make everyone aware. But this group of devices is high because it is a product in the group that supports a large number of users, many functions, features for Enterprise customers who need to use it heavily.

Which I will introduce as a product in the Small Business group or also known as SBTG. The equipment in this group will range from Router, Switch, Access Point, IP Phone, which are the main products. It will be similar to the Enterprise product group, but the products in the Small Business group will be suitable for our SMBs who want durable and inexpensive products.

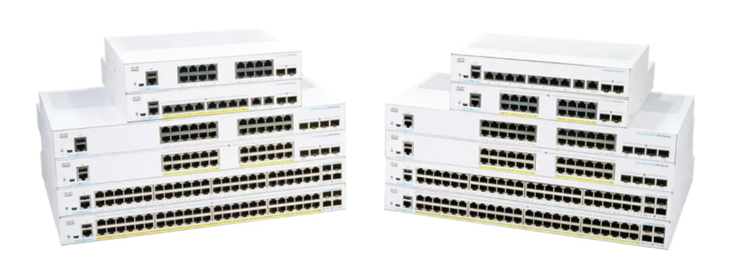

The PoE Switch CCTV that we will introduce will be divided according to the number of Ports that can supply power, starting at 8, 24, 48 Ports respectively.

In case the customer wants a PoE Switch 8 Ports that can supply PoE power to 8 Ports.

1. CBS220-8P-E-2G-EU 10/100/1000 PoE+ can supply PoE power to a total of 8 Ports, with a maximum total power supply of 65W (average 8.125W per Port).
2. CBS250-8PP-E-2G-EU 10/100/1000 PoE+ can supply PoE power to a total of 8 Ports, with a maximum total power supply of 45W (average 5.625W per Port).
3. CBS250-8P-E-2G-EU 10/100/1000 PoE+ can supply PoE power to a total of 8 Ports, with a maximum total power supply of 67W (average 8.375W per Port).
4. CBS250-8FP-E-2G-EU 10/100/1000 PoE+ can supply PoE power to a total of 8 Ports, with a maximum total power supply of 120W (average 15W per Port).

In case the customer wants a PoE Switch 24 Ports that can supply PoE power to 24 Ports.

1.   CBS220-24P-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 24 Ports, with a maximum total power of 195W (average 8.125W per Port).
2.   CBS220-24FP-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 24 Ports, with a maximum total power of 382W (average 15.916W per Port).
3.   CBS250-24P-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 24 Ports, with a maximum total power of 195W (average 8.125W per Port).
4.   CBS250-24FP-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 24 Ports, with a maximum total power of 370W (average 15.416W per Port).
5. CBS350-24P-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 24 Ports, with a maximum total power of 195W (average 8.125W per Port).

6. CBS350-24FP-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 24 Ports, with a maximum total power of 370W (average 15.416W per Port).

In case the customer wants a PoE Switch 48 Ports that can supply PoE power to 48 Ports.

1. CBS220-48P-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 48 Ports, with a maximum total power of 382W (average 7.958W per Port).
2. CBS250-48P-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 48 Ports, with a maximum total power of 370W (average 7.708W per Port).
3. CBS350-48P-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 48 Ports, with a maximum total power of 370W (average 7.708W per Port).
4. CBS350-48FP-4G-EU 10/100/1000 PoE+ can supply PoE power to a total of 48 Ports, with a maximum total power of 740W (average 15.416W per Port).

Another highlight of Cisco’s Small Business equipment is the product warranty. The products in this group will have a Limited LifeTime Warranty, that is, Cisco will guarantee the product forever until when Cisco announces EOS (End of Sale) of that product, Cisco will continue to provide the warranty for another 5 years. That means When customers buy the product today, there will be at least a 5-year warranty (if Cisco announces EOS the next day). But if that product Cisco announces EOS in the next 3 years, that product will have a warranty for at least 8 years.
